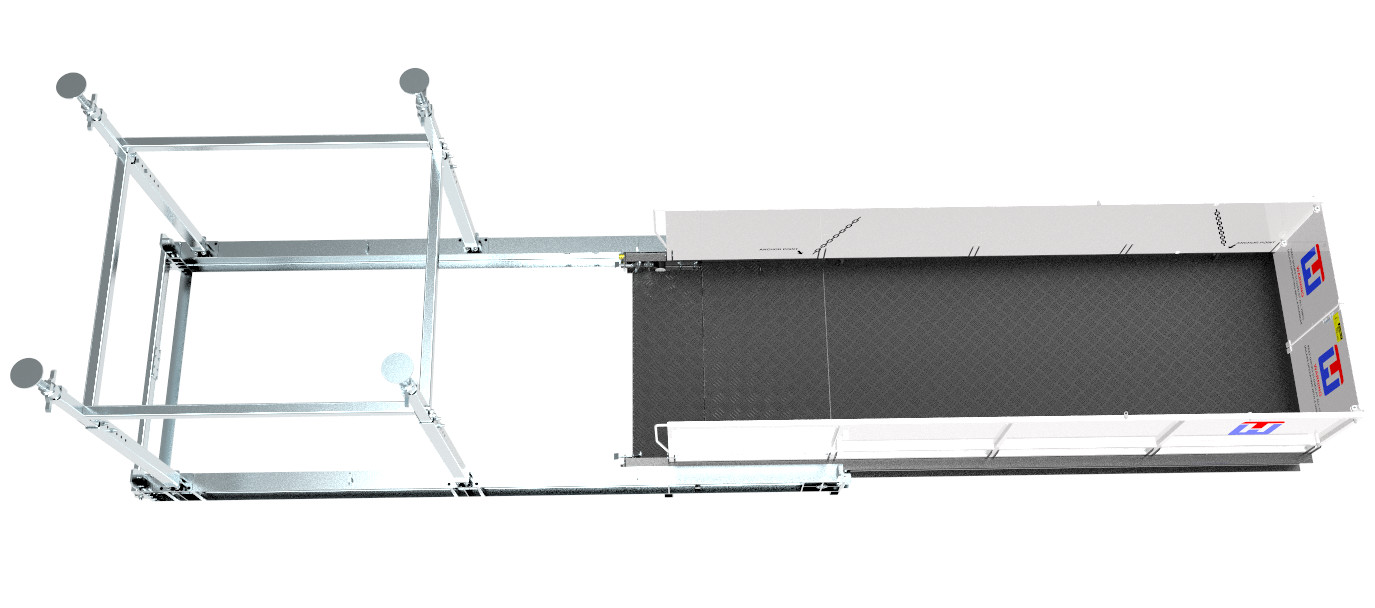

3200mm Width Superdeck Loading Platform MLP3200
Forces on the Building or Structure
The deadweight and load of the load deck apply to the ceiling and
the concrete slab by the support
props or the fixing anchoring bolts. The forces on the ceiling or
the slab floor of the building can be provided.
Application
The Superdeck is specially designed for coping with the challenges of
multi-story construction sites. Our crane loading decks make access
for tools and materials to different levels of multi-story
construction sites safe and simple, while increase the working
efficiency of tower cranes.
Function
MLP series retractable loading deck is a unique product to improve
materials handling efficiency and safety for the multi-storey and
high rise construction sectors. It offers a cost effective method
of delivering goods to different
levels of a building when used with a crane. When goods are
required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling
the crane to operate unobstructed.
MLP series retractable load decks have four types: MLP 2200-L, MLP
2200, MLP 3200 and MLP 4200 and the allowable maximum load capacity
for uniform distribution load is 5t.
The type MLP 2200 is designed to be able to transport with
container.
Models
The standard props allow a minimum height of 2400mm and a maximum
height of 3300mm.Please consult with your dealer for other special
requirements. We can design special props according to your
requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP
3200, MLP 4200 can also be fixed to the concrete slab with bolts
through slabs according to actual needs.
Support Props Height
The standard props allow a minimum height of 2400mm and a maximum
height of 3300mm.Consult
your dealer for other special requirements. We can design special
props according to your requirements. Furthermore, MLP 2200-L, MLP
2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the
concrete slab with bolts through slab if the customer needs.
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 3.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much
easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
