2200mm Width Retractable Material Cantideck MLP2200 Used At
High-rise Construction Site
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 3.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much
easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
Introduction

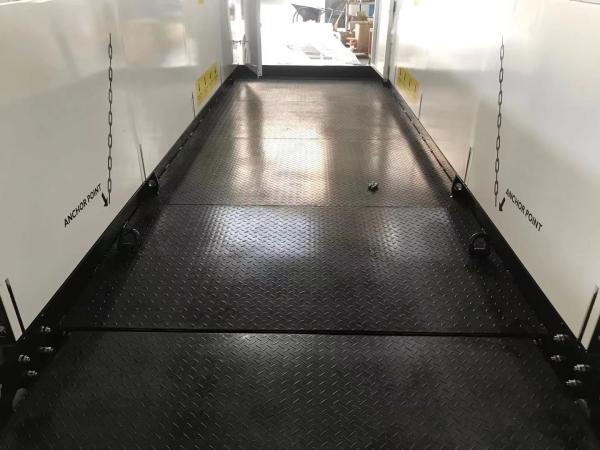

MLP series retractable load deck mainly consist of stationary
frame, moving frame and adjustable support props. The stationary
frame is located on the floor slab of the building and a “H” frame
in stationary frame is kept close to the slab edge; the movable
deck rolls in or out on the stationary frame by the rollers fixed
in the stationary frame and movable deck. To receive the material,
rolls the movable deck out of the building edge.
Function
MLP series retractable loading deck is a unique product to improve
materials handling efficiency and safety for the multi-storey and
high rise construction sectors. It offers a cost effective method
of delivering goods to different
levels of a building when used with a crane. When goods are
required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling
the crane to operate unobstructed.
Support Props Height
The standard props allow a minimum height of 2400mm and a maximum
height of 3300mm.Consult
your dealer for other special requirements. We can design special
props according to your requirements. Furthermore, MLP 2200-L, MLP
2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the
concrete slab with bolts through slab if the customer needs.
Models
The standard props allow a minimum height of 2400mm and a maximum
height of 3300mm.Please consult with your dealer for other special
requirements. We can design special props according to your
requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP
3200, MLP 4200 can also be fixed to the concrete slab with bolts
through slabs according to actual needs.
Application
The Crane Loading Deck is specially designed for coping with the challenges of
multi-story construction sites. Our crane loading decks make access
for tools and materials to different levels of multi-story
construction sites safe and simple, while increase the working
efficiency of tower cranes.
