Special Power Cable with Copper Conductor and Insulation Rubber for
Building Hoist Cable Trolley or Cable Basket
Building Hoist Power Cable
The power cable is specially designed for building hoist and tower
crane basing on the extra heavy duty carried by those machines. It
can be used at rated average voltage 450/750V.
By changing the combination of rubber formula, the resistance to
impact and reiction is greatly increased while the cable is also
capable of undertaking greater mechanical force. Comparing to
general flexible rubber cable, we are more suitable for equipment
used in contruction site.
Conductor: Electrolytic Copper
Insulation: Thermalsetting Rubber (Type CPE-1)
The standard color of insulation shealth includes: Yellow, White,
Black, Red, Blue, Green, Brown or can be customized according to
your needs
Product advantages: It has the advantages of excellent tensile property, excellent
torsion resistance, no package, continuous core, wear resistance,
etc.

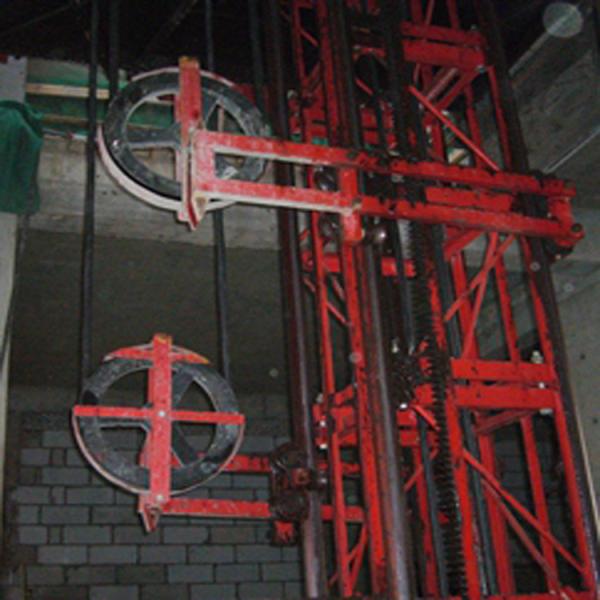

Products application: For rated voltage 450/750V and below the lift (elevator
construction) or other heavy electrical equipment, mobile power
supply connection for the dynamic laying the pulley lift, able to
withstand greater force and anti-torque.
Cores x Nominal
Cross Section (mm²) | Outer Sheath
Thickness (mm) | Averages Outer Diameter (mm) |
| Minimum | Maximum |
| 3x10+1x6 | 3.4 | 21.0 | 25.5 |
| 3x16+1x6 | 3.6 | 22.4 | 28.4 |
| 3x16+1x10 | 3.6 | 23.5 | 29.5 |
| 3x25+1x10 | 4.1 | 27.3 | 34.5 |
| 3x25+1x16 | 4.1 | 28.0 | 35.2 |
| 3x10+2x16 | 3.5 | 21.4 | 27.1 |
| 3x16+2x16 | 3.7 | 23.5 | 29.7 |
| 3x16+2x10 | 3.7 | 25.5 | 31.7 |
| 3x25+2x10 | 4.2 | 28.6 | 36.1 |
| 3x25+2x16 | 4.2 | 29.9 | 37.4 |
